The Herald 1200 rear suspension is the original setup for rear suspension on the small chassis Triumphs.

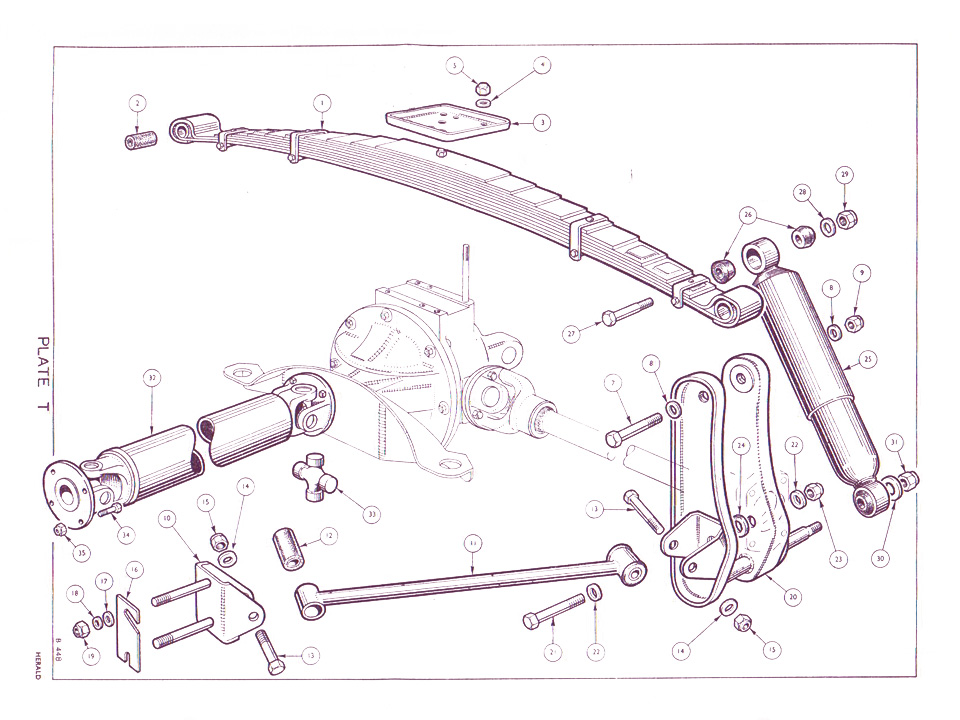

Click the item numbers in the diagram below for product information.
item 1 : 305945 item 2 : 114006, C8939B, C8939R, KIT33B, KIT33R, C8939 item 3 : 117584 item 4 : 502661 item 5 : YN2909 item 7 : HB1027 item 8 : WP10 item 8 : WP10 item 9 : YN2910 item 10 : 120043, 120042, 120045, 120044, Pivot Bracket Attachment, HB926, HB924 item 11 : 119647, 124679 item 12 : 119451, 119451B, 119451R, KIT33B, KIT33R item 13 : HB918, F1 item 13 : HB918, F1 item 14 : WP9 item 14 : WP9 item 15 : YN2909 item 15 : YN2909 item 16 : 118825 item 17 : 502661 item 18 : WP9 item 19 : YN2909 item 20 : 122100, 132763, 132764, 132764R item 21 : HB1027, F1 item 22 : WP10 item 22 : WP10 item 23 : YN2910 item 24 : 514370 item 25 : GSA385 item 26 : 102987 item 27 : 118599, F1 item 28 : WP11 item 29 : TN3211, F1 item 30 : WM69 item 31 : YN2910, F1 item 32 : 206275, PROPSPORT item 33 : GUJ101, GUJ115, RHS152, 128136 item 34 : 129361K item 35 : YN2908

To add any of the in stock, built to order, or available to order items to your basket, please choose an order qty and then hit the add to basket button.

To make it easier for our overseas customers, you can now browse our website and view prices in over

ITEM NO. PART NO. DESCRIPTION PRICE EXCH.
SURCHARGE
UNITS AVAILABILITY QTY REQ ORDER QTY
  REAR TRANSVERSE ROAD SPRING ASSEMBLY
1 305945 REAR SPRING - HERALD VITESSE 6 & 2LT MKI £185.22 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
2 114006 REAR SPRING THRUST BUTTONS - ALL MODELS £0.85 EACH IN STOCK 8
Order Quantity :
2 C8939B BUSH - SPRING EYE - POLY BLUE £7.30 EACH IN STOCK 1
Order Quantity :
2 C8939R BUSH - SPRING EYE - POLY RED £7.30 EACH IN STOCK 1
Order Quantity :
2 KIT33B POLYBUSH KIT - SPIT I-III VITI HERALD £130.40 CAR SET OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
2 KIT33R POLYBUSH KIT - SPIT I-III VITI HERALD £130.40 CAR SET OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
2 C8939 BUSH - SPRING EYE £4.15 EACH IN STOCK 2
Order Quantity :
3 117584 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

4 502661 WASHER N/A NO LONGER AVAILABLE 6

5 YN2909 NYLOC NUT - 3/8 £0.22 EACH IN STOCK 6
Order Quantity :
7 HB1027 BOLT - 7/16" X 3 3/8" UNF £0.90 EACH IN STOCK 2
Order Quantity :
8 WP10 PLAIN WASHER - 7/16 £0.20 EACH IN STOCK 2
Order Quantity :
9 YN2910 NYLOC NUT - 7/16 £0.30 EACH IN STOCK 2
Order Quantity :
10 120043 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

10 120042 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

10 120045 BRACKET RADIUS ARM - OUTRIGGER HER VIT R/H N/A NO LONGER AVAILABLE 1

10 120044 BRACKET RADIUS ARM - OUTRIGGER LH HER VIT £17.85 EACH IN STOCK 1
Order Quantity :
  Pivot Bracket Attachment
10 HB926 BOLT - 3/8 X 3" UNF £1.00 EACH IN STOCK 4
Order Quantity :
10 HB924 BOLT - 3/8" X 3" UNF £0.65 EACH IN STOCK 4
Order Quantity :
11 119647 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 2

11 124679 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 2

12 119451 BUSH - WISHBONE RADIUS ARM £1.58 EACH IN STOCK 4
Order Quantity :
12 119451B BUSH - WISHBONE/RADIUS ARM - POLY BLUE £6.00 EACH IN STOCK 4
Order Quantity :
12 119451R BUSH - WISHBONE/RADIUS ARM - POLY RED £6.00 EACH IN STOCK 4
Order Quantity :
12 KIT33B POLYBUSH KIT - SPIT I-III VITI HERALD £130.40 CAR SET OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
12 KIT33R POLYBUSH KIT - SPIT I-III VITI HERALD £130.40 CAR SET OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
13 HB918 BOLT - 3/8" X 2 1/4" UNF £0.39 EACH IN STOCK 4
Order Quantity :
13 F1 REAR SUSPENSION NUT & BOLT KIT (NON ROTOFLEX) £8.89 AXLE SET BUILT TO ORDER 1
Order Quantity :
14 WP9 PLAIN WASHER - 3/8 £0.20 EACH IN STOCK 4
Order Quantity :
15 YN2909 NYLOC NUT - 3/8 £0.22 EACH IN STOCK 4
Order Quantity :
16 118825 SHIM - TOE IN ADJUSTMENT HER VIT £1.60 EACH IN STOCK A/R
Order Quantity :
17 502661 WASHER N/A NO LONGER AVAILABLE 4

18 WP9 PLAIN WASHER - 3/8 £0.20 EACH IN STOCK 4
Order Quantity :
19 YN2909 NYLOC NUT - 3/8 £0.22 EACH IN STOCK 4
Order Quantity :
  !REAR VERTICAL LINK ASSEMBLY
20 122100 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

20 132763 REAR VERTICAL LINK R/H N/A NO LONGER AVAILABLE 1

20 132764 REAR VERTICAL LINK L/H £59.00 EACH IN STOCK 1
Order Quantity :
20 132764R REAR VERTICAL LINK L/H RECONDITIONED £35.00 EACH IN STOCK 1
Order Quantity :
21 HB1027 BOLT - 7/16" X 3 3/8" UNF £0.90 EACH IN STOCK 2
Order Quantity :
21 F1 REAR SUSPENSION NUT & BOLT KIT (NON ROTOFLEX) £8.89 AXLE SET BUILT TO ORDER 1
Order Quantity :
22 WP10 PLAIN WASHER - 7/16 £0.20 EACH IN STOCK 4
Order Quantity :
23 YN2910 NYLOC NUT - 7/16 £0.30 EACH IN STOCK 2
Order Quantity :
24 514370 REAR TRUNNION KIT £4.74 EACH IN STOCK 4
Order Quantity :
  REAR DAMPER
25 GSA385 REAR SHOCK ABSORBER NON ROTOFLEX WITH BUSHES £13.98 EACH IN STOCK 2
Order Quantity :
26 102987 REAR SHOCK ABSORBER BUSH £0.91 EACH IN STOCK 8
Order Quantity :
27 118599 TOP SHOCK BOLT £2.40 EACH IN STOCK 2
Order Quantity :
27 F1 REAR SUSPENSION NUT & BOLT KIT (NON ROTOFLEX) £8.89 AXLE SET BUILT TO ORDER 1
Order Quantity :
28 WP11 PLAIN WASHER - 1/2 £0.20 EACH IN STOCK 2
Order Quantity :
29 TN3211 NYLOC NUT - 1/2 THIN £0.55 EACH IN STOCK 2
Order Quantity :
29 F1 REAR SUSPENSION NUT & BOLT KIT (NON ROTOFLEX) £8.89 AXLE SET BUILT TO ORDER 1
Order Quantity :
30 WM69 PLAIN WASHER - 7/16 x 1 3/8" (SHOCK MOUNT) £0.79 EACH IN STOCK 2
Order Quantity :
31 YN2910 NYLOC NUT - 7/16 £0.30 EACH IN STOCK 2
Order Quantity :
31 F1 REAR SUSPENSION NUT & BOLT KIT (NON ROTOFLEX) £8.89 AXLE SET BUILT TO ORDER 1
Order Quantity :
  PROPELLOR SHAFT
32 206275 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

32 PROPSPORT PROPSHAFT HEAVY DUTY/MOTORSPORT £253.75 EACH BUILT TO ORDER 1
Order Quantity :
33 GUJ101 UNIVERSAL JOINT - STANDARD (GKN) £10.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
33 GUJ115 UNIVERSAL JOINT - WITH GREASE NIPPLE (GKN) £10.98 EACH IN STOCK 2
Order Quantity :
33 RHS152 UNIVERSAL JOINT - HEAVY DUTY UJ £24.98 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
33 128136 UJ FLANGE SMALL (5/16" BOLT) £13.91 EACH IN STOCK 1
Order Quantity :
34 129361K BOLT & NUT FOR PROPSHAFT - 5/16" £1.20 EACH OUT OF STOCK, AVAILABLE TO ORDER 8
Order Quantity :
35 YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 8
Order Quantity :
  ROAD WHEEL
NI 302341 ROAD WHEEL - 3.5" HERALD (EARLY) N/A NO LONGER AVAILABLE 5

NI 303804 ROAD WHEEL - 3.5" HERALD (EARLY) N/A NO LONGER AVAILABLE 5

NI 122806 HUB CAP - HERALD SPIT I-III VIT GT6 MKI £31.00 EACH IN STOCK 4
Order Quantity :
NI 113087 WHEEL NUT - HERALD SPIT I-III GT6 I-II VIT £1.19 EACH IN STOCK 16
Order Quantity :
