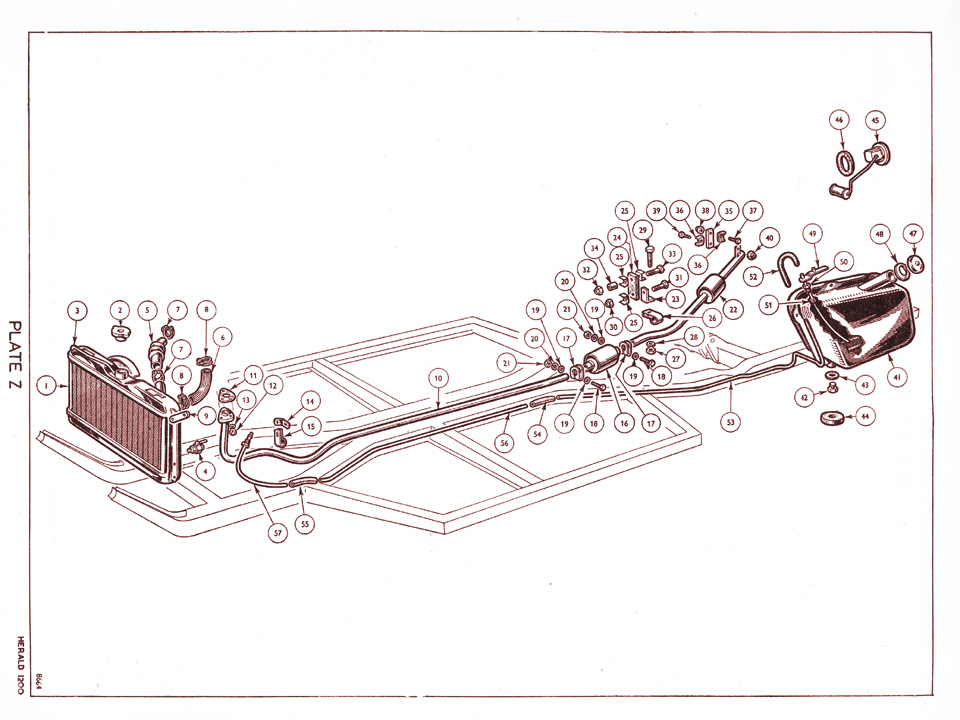

Click the item numbers in the diagram below for product information.
item 10 : ~Front pipes supplied as two parts , TH31, Herald 1200, TH30, Herald 12/50, GEX1250S, ~Complete Exhaust Systems, X3S, X3F, X4S, X4F item 21 : HN2008 item 21 : HN2008 item 20 : WL208 item 20 : WL208 item 19 : WP8 item 19 : WP8 item 19 : WP8 item 19 : WP8 item 17 : GEX9003 item 17 : GEX9003 item 30 : YN2908 item 25 : GEX7510 item 25 : GEX7510 item 25 : GEX7510 item 23 : 105578 item 31 : HU808 item 33 : HB813 item 32 : YN2908 item 34 : 127310 item 24 : SS50, GEX7359 item 29 : HU808 item 36 : GEX7510 item 36 : GEX7510 item 39 : HU808 item 38 : EN3608, YN2908 item 35 : SS50, GEX7359 item 37 : HU808 item 40 : YN2908 item 49 : 205997 item 50 : 60176 item 48 : 601661 item 47 : 600482, 600153 item 46 : 110777 item 45 : 205003, 213411 item 41 : 303480, 517974 item 43 : WF513 item 44 : 608052 item 42 : 103222 item 53 : 304772, PPK1 item 51 : 123962 item 52 : 122796 item 22 : 305635, GEX3197, 304515, 308284, TH32, X3S, X3F, X4S, X4F item 26 : 122004 item 28 : WL208 item 27 : HN2008 item 18 : HB818 item 18 : HB818 item 16 : GEX6038, X3S, X3F, X4S, X4F, TH9483 item 54 : 120331 item 56 : 304165 item 55 : 125170 item 57 : 60176, TL7, KO2, 60176 TL7 KO2 item 4 : 132565 item 1 : 305340 Fitted up to Commission No. GA80000 only, 305667 Fitted from Commission No. GB1 and GA80001 and future, RKC2117 item 3 : 121311 item 2 : GRC112, GRC180, GRC112 Fitted up to Comission No. GA240781 only, GRC180 Fitted from Commission No. GA240782 and future item 5 : GRH533 item 7 : CS4025 item 7 : CS4025 item 8 : CS4023 item 8 : CS4023 item 6 : GRH532 item 9 : 130030 item 13 : WL208 item 11 : GEG717, GEG702 item 12 : 515369 item 14 : GEX7511 item 15 : 122134

To add any of the in stock, built to order, or available to order items to your basket, please choose an order qty and then hit the add to basket button.

To make it easier for our overseas customers, you can now browse our website and view prices in over

ITEM NO. PART NO. DESCRIPTION PRICE EXCH.
SURCHARGE
UNITS AVAILABILITY QTY REQ ORDER QTY
  RADIATOR BLOCK ASSEMBLY
  305340 Fitted up to Commission No. GA80000 only
  305667 Fitted from Commission No. GB1 and GA80001 and future
1 RKC2117 RADIATOR - SPITFIRE HERALD FULL WIDTH £138.98 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
2 GRC112 RADIATOR CAP - 7 LBS £4.99 EACH IN STOCK 1
Order Quantity :
2 GRC180 RADIATOR CAP - 13 LBS £3.98 EACH IN STOCK 1
Order Quantity :
  GRC112 Fitted up to Comission No. GA240781 only
  GRC180 Fitted from Commission No. GA240782 and future
3 121311 RADIATOR OVERFLOW PIPE £2.55 EACH IN STOCK 1
Order Quantity :
4 132565 DRAIN TAP RADIATOR £8.00 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
5 GRH533 RAD TOP HOSE - HERALD SPITFIRE GT6 £8.48 EACH IN STOCK 1
Order Quantity :
6 GRH532 RAD BOTTOM HOSE HERALD SPITFIRE £5.98 EACH IN STOCK 1
Order Quantity :
7 CS4025 RADIATOR HOSE CLIP WIRE TYPE £1.15 EACH IN STOCK 2
Order Quantity :
8 CS4023 WIRECLIP 1 1/4 - 1 7/16 £1.14 EACH IN STOCK 2
Order Quantity :
NI HU705 SETSCREW - 1/4" X 5/8" UNF £0.25 EACH IN STOCK 2
Order Quantity :
NI WP7 PLAIN WASHER - 1/4 £0.20 EACH IN STOCK 2
Order Quantity :
NI WL207 SPRING WASHER - 1/4 £0.11 EACH IN STOCK 2
Order Quantity :
NI HN2007 STEEL NUT - 1/4 £0.20 EACH IN STOCK 2
Order Quantity :
9 130030 SPRING ANCHOR UPPER HERALD 1200 N/A NO LONGER AVAILABLE 2

NI HU705 SETSCREW - 1/4" X 5/8" UNF £0.25 EACH IN STOCK 2
Order Quantity :
NI HN2007 STEEL NUT - 1/4 £0.20 EACH IN STOCK 2
Order Quantity :
NI WP7 PLAIN WASHER - 1/4 £0.20 EACH IN STOCK 2
Order Quantity :
NI WL207 SPRING WASHER - 1/4 £0.11 EACH IN STOCK 2
Order Quantity :
NI 611930 ANCHOR BRACKET RH N/A NO LONGER AVAILABLE 1

NI 611929 ANCHOR BRACKET LH N/A NO LONGER AVAILABLE 1

  EXHAUST PIPE ASSEMBLY - FRONT
  Front pipes supplied as two parts
10 TH31 LINK PIPE - HERALD STAINLESS £40.69 EACH IN STOCK 1
Order Quantity :
  Herald 1200
10 TH30 FRONT PIPE - HERALD 1200 N/A NO LONGER AVAILABLE 1

  Herald 12/50
10 GEX1250S FRONT PIPE - SPITFIRE I - STAINLESS N/A NO LONGER AVAILABLE 1

  Complete Exhaust Systems
10 X3S EXHAUST SYSTEM - HERALD 1200 £153.90 CAR SET BUILT TO ORDER 1
Order Quantity :
10 X3F EXHAUST FITTING KIT - HERALD 1200 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
10 X4S EXHAUST SYSTEM - HERALD 12/50 £151.80 CAR SET BUILT TO ORDER 1
Order Quantity :
10 X4F EXHAUST FITTING KIT - HERALD 12/50 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
NI 130807 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 134328 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 136556 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

11 GEG717 DOWNPIPE GASKET - HERALD 948 1200 N/A NO LONGER AVAILABLE 1

11 GEG702 DOWNPIPE GASKET - HERALD 948TC 12/50 SPIT I £2.05 EACH IN STOCK 1
Order Quantity :
12 515369 BRASS NUT - 5/16 UNF (DOWNPIPE STUD) £0.54 EACH IN STOCK 3
Order Quantity :
13 WL208 SPRING WASHER - 5/16 £0.20 EACH IN STOCK 3
Order Quantity :
14 GEX7511 TWISTED BRACKET EXHAUST HER SPITI-IV VIT GT6 £4.15 EACH IN STOCK 1
Order Quantity :
15 122134 CLIP - EXHAUST PIPE TO BRACKET N/A NO LONGER AVAILABLE 1

NI HU809 SETSCREW - 5/16" X 1 1/8" UNF £0.37 EACH IN STOCK 1
Order Quantity :
NI WP8 PLAIN WASHER - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
NI WL208 SPRING WASHER - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
NI HN2008 STEEL NUT - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
NI HB810 BOLT - 5/16" X 1 1/4" UNF £0.30 EACH IN STOCK 1
Order Quantity :
NI YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 1
Order Quantity :
NI WP8 PLAIN WASHER - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
NI GEX732930 EXHAUST MOUNTING TO DIFFERENTIAL £3.25 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
NI GEX732930 EXHAUST MOUNTING TO DIFFERENTIAL £3.25 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
NI WP149 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

  EXPANSION CHAMBER
16 GEX6038 EXPANSION BOX 948/1200 I N/A NO LONGER AVAILABLE 1

16 X3S EXHAUST SYSTEM - HERALD 1200 £153.90 CAR SET BUILT TO ORDER 1
Order Quantity :
16 X3F EXHAUST FITTING KIT - HERALD 1200 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
16 X4S EXHAUST SYSTEM - HERALD 12/50 £151.80 CAR SET BUILT TO ORDER 1
Order Quantity :
16 X4F EXHAUST FITTING KIT - HERALD 12/50 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
16 TH9483 CENTRE SILENCER - HERALD MKI £32.30 EACH IN STOCK 1
Order Quantity :
17 GEX9003 U CLAMP EXHAUST - 1 3/8" 35MM £2.10 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
18 HB818 BOLT - 5/16" X 2 1/4" UNF £0.35 EACH IN STOCK 2
Order Quantity :
19 WP8 PLAIN WASHER - 5/16 £0.20 EACH IN STOCK 4
Order Quantity :
20 WL208 SPRING WASHER - 5/16 £0.20 EACH IN STOCK 2
Order Quantity :
21 HN2008 STEEL NUT - 5/16 £0.20 EACH IN STOCK 2
Order Quantity :
  EXHAUST SILENCER AND REAR PIPE ASSEMBLY
22 305635 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

22 GEX3197 REAR BOX - 948/1200 MKI N/A NO LONGER AVAILABLE 1

22 304515 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

22 308284 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

22 TH32 REAR BOX - HERALD STAINLESS £88.81 EACH IN STOCK 1
Order Quantity :
22 X3S EXHAUST SYSTEM - HERALD 1200 £153.90 CAR SET BUILT TO ORDER 1
Order Quantity :
22 X3F EXHAUST FITTING KIT - HERALD 1200 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
22 X4S EXHAUST SYSTEM - HERALD 12/50 £151.80 CAR SET BUILT TO ORDER 1
Order Quantity :
22 X4F EXHAUST FITTING KIT - HERALD 12/50 £18.70 CAR SET BUILT TO ORDER 1
Order Quantity :
23 105578 EXHAUST MT BRACKET N/A NO LONGER AVAILABLE 1

24 SS50 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

24 GEX7359 SILENCER HANGER STRAP £1.35 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
25 GEX7510 CLAMP PLATE (REFER GEX7359) £1.89 EACH IN STOCK 3
Order Quantity :
26 122004 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

27 HN2008 STEEL NUT - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
28 WL208 SPRING WASHER - 5/16 £0.20 EACH IN STOCK 1
Order Quantity :
29 HU808 SETSCREW - 5/16" X 1" UNF £0.25 EACH IN STOCK 1
Order Quantity :
30 YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 1
Order Quantity :
31 HU808 SETSCREW - 5/16" X 1" UNF £0.25 EACH IN STOCK 1
Order Quantity :
32 YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 1
Order Quantity :
33 HB813 BOLT N/A NO LONGER AVAILABLE 1

34 127310 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

35 SS50 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

35 GEX7359 SILENCER HANGER STRAP £1.35 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
36 GEX7510 CLAMP PLATE (REFER GEX7359) £1.89 EACH IN STOCK 2
Order Quantity :
37 HU808 SETSCREW - 5/16" X 1" UNF £0.25 EACH IN STOCK 1
Order Quantity :
38 EN3608 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

38 YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 1
Order Quantity :
39 HU808 SETSCREW - 5/16" X 1" UNF £0.25 EACH IN STOCK 1
Order Quantity :
40 YN2908 NYLOC NUT - 5/16 £0.22 EACH IN STOCK 1
Order Quantity :
  TAIL PIPE EXTENSION (Exhaust Pipe)
NI 509358 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 126767 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI GEX7510 CLAMP PLATE (REFER GEX7359) £1.89 EACH IN STOCK 1
Order Quantity :
NI CJ3030 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 140038 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 140039 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

  PETROL TANK ASSEMBLY
41 303480 PETROL TANK HERALD 6.5GAL SEE 517974 N/A NO LONGER AVAILABLE 1

41 517974 PETROL TANK HERALD VITESSE 7 1/2 GAL £299.75 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
NI 125061 RESERVE TANK INSTRUCTION TRANSFER £4.55 EACH IN STOCK 1
Order Quantity :
42 103222 PETROL DRAIN PLUG £5.78 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
43 WF513 FIBRE WASHER - 5/8" ID £0.55 EACH IN STOCK 1
Order Quantity :
44 608052 DRAIN PLUG SEAL - HERALD VITESSE £8.70 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
NI 610470 DRAIN PLUG BRACKET N/A NO LONGER AVAILABLE 1

NI UL2704 SCREW - 1/4" X 1/2" HEXAGON HEAD ACME THREAD £0.28 EACH IN STOCK 4
Order Quantity :
NI FA3058 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI FA3057 SPIRE CLIP FA 3057/4 £0.30 EACH IN STOCK 3
Order Quantity :
45 205003 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

45 213411 TANK SENDER HERALD VITESSE 6 SCREW STABALISED N/A NO LONGER AVAILABLE 1

46 110777 GASKET - PETROL TANK SENDER SIX SCREW £0.55 EACH IN STOCK 1
Order Quantity :
NI PT504 SCREW NO 10 1/2" £0.30 EACH IN STOCK 6
Order Quantity :
NI WF505 FIBRE WASHER - NO10 ID £0.90 EACH IN STOCK 6
Order Quantity :
NI 123286 TANK SENDER COVER £12.41 EACH IN STOCK 1
Order Quantity :
47 600482 LOCKING PETROL FILLER CAP N/A NO LONGER AVAILABLE 1

47 600153 LOCKING PETROL CAP HERALD/VITESSE - BLACK N/A NO LONGER AVAILABLE 1

48 601661 TANK FILLER GROMMET - HERALD VITESSE £12.00 EACH IN STOCK 1
Order Quantity :
49 205997 PETROL PIPE N/A NO LONGER AVAILABLE 1

50 60176 PIPE NUT - 1/4" PIPE £1.98 EACH IN STOCK 1
Order Quantity :
51 123962 SEAL PETROL TANK N/A NO LONGER AVAILABLE 1

52 122796 RUBBER CONNECTOR N/A NO LONGER AVAILABLE 1

53 304772 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

53 PPK1 PETROL PIPE KIT - HERALD VITESSE 6-MKI 2LT £24.45 CAR SET BUILT TO ORDER 1
Order Quantity :
NI 600395 GROMMET - 1" WITH HOLE £0.90 EACH IN STOCK 1
Order Quantity :
54 120331 PETROL HOSE 3"-3/16 HOSE N/A NO LONGER AVAILABLE 1

55 125170 RUBBER CONNECTOR - 3" 1/4 PIPE (3/16) £1.12 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
NI 125170 RUBBER CONNECTOR - 3" 1/4 PIPE (3/16) £1.12 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
NI 122796 RUBBER CONNECTOR N/A NO LONGER AVAILABLE 1

NI 120331 PETROL HOSE 3"-3/16 HOSE N/A NO LONGER AVAILABLE 1

56 304165 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI PPK1 PETROL PIPE KIT - HERALD VITESSE 6-MKI 2LT £24.45 CAR SET BUILT TO ORDER 1
Order Quantity :
NI 209503 PIPE ASSEMBLY N/A NO LONGER AVAILABLE 1

57 60176 PIPE NUT - 1/4" PIPE £1.98 EACH IN STOCK 1
Order Quantity :
57 TL7 OLIVE FOR 1/4" PIPE £0.69 EACH IN STOCK 1
Order Quantity :
57 KO2 COPPER PIPE 1/4" (SELL BY THE METRE) £5.05 METRE OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
57 60176 TL7 KO2 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 144542 PIPE NUT OLIVE 1/4" - FUEL PUMP INLET £3.10 EACH IN STOCK 1
Order Quantity :
