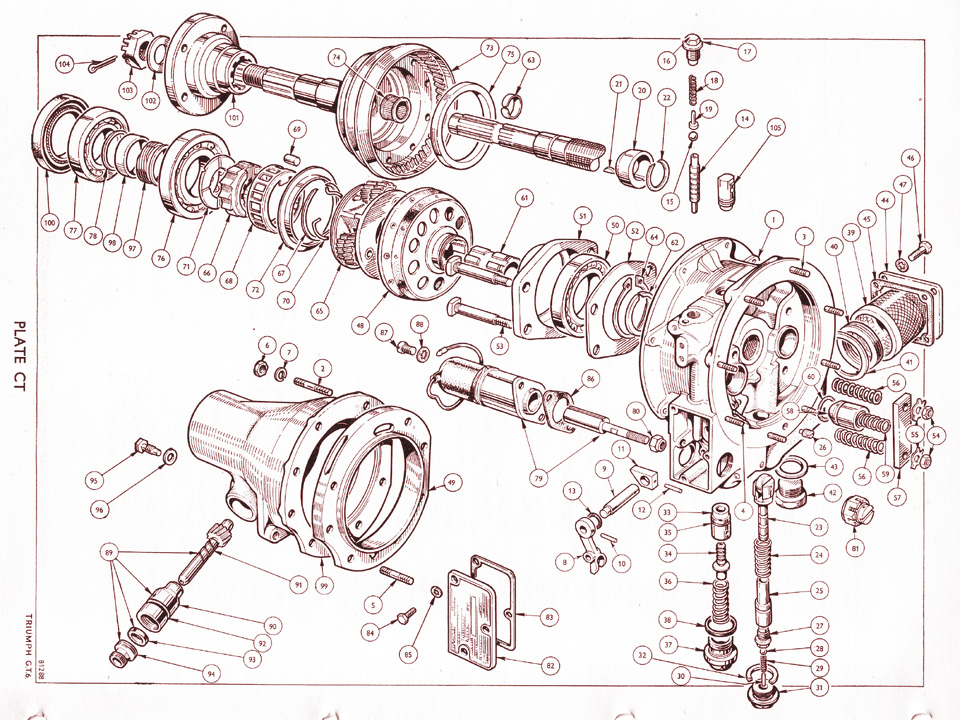

Click the item numbers in the diagram below for product information.
item 104 : PC20 item 103 : 515817 item 102 : 515818 item 101 : 146102 item 74 : 506113 item 73 : 513195 item 75 : NOT SERVICED item 63 : 513223 item 21 : WKN304 item 20 : 513216 item 22 : 139532 item 16 : 506117 item 17 : 500568 item 18 : 506070, 513218 item 19 : 500591, 513218 item 14 : 138926 item 105 : 502560 item 15 : BLS110 item 100 : 7H8325 item 77 : 533360 item 78 : 513214/1, 513214/2, 513214/3, 513214/4 item 98 : 513211 item 97 : 506099 item 76 : 506111 item 71 : 500613 item 66 : 513209K item 68 : 502559, 513209K item 72 : 513215 item 67 : 513210 item 70 : 513208 item 65 : 515815, 513224, 500412 item 48 : 513200R item 87 : PT504 item 88 : WN705 item 53 : 513203 item 69 : 502550 item 61 : 506044 item 51 : 506081 item 50 : 506112 item 52 : 506104 item 64 : 137308 item 62 : 506091 item 1 : 515814 item 3 : NKC57 item 40 : 513205 item 39 : 513202 item 45 : 506098 item 44 : 506097 item 47 : WN707 item 46 : HU706 item 41 : 506097 item 56 : 513199 item 56 : 513199 item 54 : TN3207 item 55 : TN3207 item 60 : TRS1114 item 58 : 513220 item 26 : 506076 item 43 : 506118 item 59 : 513219 item 57 : 506084 item 81 : 514200 item 24 : 500633 item 23 : 513196 item 4 : NKC57 item 42 : 513206 item 25 : 513222 item 27 : 513192 item 28 : BLS107 item 29 : 513192K item 31 : 513206 item 30 : 514889 item 32 : 506118 item 37 : 513193 item 38 : 506118 item 36 : 513193 item 34 : 513193 item 35 : 513193, 506129A item 33 : 513193, 513193P item 12 : 513888 item 10 : 500412 item 8 : 515813 item 13 : 500594 item 9 : 515811 item 79 : 512114 item 49 : 513228 item 83 : 513204 item 82 : 506109 item 85 : WN705 item 84 : HU504 item 5 : 506103 item 99 : 513198 item 91 : 506119 item 90 : 506066 item 92 : 506115 item 93 : 506067S item 94 : 501606 item 89 : 506067, 506067A item 96 : 500469 item 95 : 506071 item 2 : 506082 item 7 : WL207 item 6 : HN2007 item 11 : 515812 item 80 : TN3207 item 86 : 513201

To add any of the in stock, built to order, or available to order items to your basket, please choose an order qty and then hit the add to basket button.

To make it easier for our overseas customers, you can now browse our website and view prices in over

ITEM NO. PART NO. DESCRIPTION PRICE EXCH.
SURCHARGE
UNITS AVAILABILITY QTY REQ ORDER QTY
  OVERDRIVE UNIT
NI 307862R OVERDRIVE - D TYPE RECON (NO FLANGE) £425.00 £150.00 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
  FRONT CASING ASSEMBLY
1 515814 MAIN CASING N/A NO LONGER AVAILABLE 1

2 506082 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 6

3 NKC57 STUD O/D FRONT N/A NO LONGER AVAILABLE 7

4 NKC57 STUD O/D FRONT N/A NO LONGER AVAILABLE 1

5 506103 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 2

6 HN2007 STEEL NUT - 1/4 £0.20 EACH IN STOCK 16
Order Quantity :
7 WL207 SPRING WASHER - 1/4 £0.20 EACH IN STOCK 16
Order Quantity :
NI 159369 GASKET TO OVERDRIVE £1.15 EACH IN STOCK 1
Order Quantity :
  OPERATING VALVE LEVER
8 515813 LEVER N/A NO LONGER AVAILABLE 1

9 515811 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

10 500412 MILLS PIN D TYPE £0.85 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
11 515812 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

12 513888 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

13 500594 O RING D TYPE £0.75 EACH IN STOCK 1
Order Quantity :
14 138926 OPERATING VALVE N/A NO LONGER AVAILABLE 1

15 BLS110 BALL BEARING 5/16 £0.30 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
16 506117 OP VALVE PLUG D TYPE N/A NO LONGER AVAILABLE 1

17 500568 COPPER WASHER D TYPE N/A NO LONGER AVAILABLE 1

18 506070 OP VALVE SPRING ALSO SEE 513218K £3.10 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
18 513218 OPERATING VALVE D TYPE £16.63 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
19 500591 OP VALVE PLUNGER £10.90 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
19 513218 OPERATING VALVE D TYPE £16.63 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
20 513216 OVERDRIVE OIL PUMP CAM - D TYPE £26.65 EACH IN STOCK 1
Order Quantity :
21 WKN304 WOODRUFF KEY O/D £0.72 EACH IN STOCK 1
Order Quantity :
22 139532 SPRING CLIP - D TYPE O/D CAM RETAINER £3.85 EACH IN STOCK 1
Order Quantity :
  OIL PUMP PLUNGER ASSEMBLY
23 513196 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

24 500633 PUMP SPRING £3.55 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
25 513222 PUMP BODY £27.25 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
26 506076 PUMP BODY SCREW £2.10 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
27 513192 BODY NON RETURN N/A NO LONGER AVAILABLE 1

28 BLS107 BALL BEARING 7/32 £0.30 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
29 513192K VALVE BODY ASSEMBLY D TYPE £30.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
30 514889 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

NI 517294 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

31 513206 PLUG FOR VALVE D TYPE N/A NO LONGER AVAILABLE 1

32 506118 COPPER WASHER £0.95 EACH IN STOCK 1
Order Quantity :
  RELIEF VALVE KIT
33 513193 RELIEF VALVE D TYPE £38.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
33 513193P RELIEF VALVE PLUG £5.65 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
34 513193 RELIEF VALVE D TYPE £38.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
35 513193 RELIEF VALVE D TYPE £38.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
35 506129A O RING RELIEF VALVE D TYPE £0.40 EACH IN STOCK 1
Order Quantity :
36 513193 RELIEF VALVE D TYPE £38.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
37 513193 RELIEF VALVE D TYPE £38.50 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
38 506118 COPPER WASHER £0.95 EACH IN STOCK 1
Order Quantity :
39 513202 FILTER D TYPE £17.50 EACH IN STOCK 1
Order Quantity :
40 513205 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

41 506097 FILTER PLATE COVER £5.65 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
42 513206 PLUG FOR VALVE D TYPE N/A NO LONGER AVAILABLE 1

43 506118 COPPER WASHER £0.95 EACH IN STOCK 1
Order Quantity :
44 506097 FILTER PLATE COVER £5.65 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
45 506098 FILTER GASKET FOR D TYPE £1.10 EACH IN STOCK 1
Order Quantity :
46 HU706 SETSCREW - 1/4" X 3/4" UNF £0.20 EACH IN STOCK 4
Order Quantity :
47 WN707 WASHER - SHAKEPROOF 1/4 £0.25 EACH IN STOCK 4
Order Quantity :
  CLUTCH SLIDING MEMBER ASSEMBLY
48 513200R RELINED CLUTCH ASSEMBLY - D TYPE £118.13 £25.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
49 513228 BRAKE RING D TYPE £36.55 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
50 506112 SLIDING MEMBER - BEARING D TYPE £16.96 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
51 506081 CLUTCH BEARING HOUSING £22.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
52 506104 PLATE D TYPE £7.10 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
53 513203 BOLT D TYPE X FOUR £16.00 EACH OUT OF STOCK, AVAILABLE TO ORDER 4
Order Quantity :
54 TN3207 NYLOC NUT - 1/4 THIN N/A NO LONGER AVAILABLE 4

55 TN3207 NYLOC NUT - 1/4 THIN N/A NO LONGER AVAILABLE 5

56 513199 RETURN SPRING CLUTCH D TYPE X FOUR N/A NO LONGER AVAILABLE 4

57 506084 BRIDGE PIECE - D TYPE O/D £7.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
58 513220 OP PISTON D TYPE X TWO £17.80 EACH OUT OF STOCK, AVAILABLE TO ORDER 2
Order Quantity :
59 513219 SPRING PISTON D TYPE N/A NO LONGER AVAILABLE 2

60 TRS1114 OPERATING PISTON O RING - D TYPE £0.65 EACH IN STOCK 2
Order Quantity :
  SUNWHEEL ASSEMBLY
61 506044 SUNWHEEL D TYPE £22.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
62 506091 SUNWHEEL CIRCLIP £3.98 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
63 513223 REAR CLIP D TYPE MAINSHAFT £4.85 EACH IN STOCK 1
Order Quantity :
64 137308 SPRING CLIP - J TYPE O/D CAM RETAINER £3.85 EACH IN STOCK 1
Order Quantity :
  PLANET CARRIER ASSEMBLY
65 515815 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

65 513224 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 6

65 500412 MILLS PIN D TYPE £0.85 EACH OUT OF STOCK, AVAILABLE TO ORDER 3
Order Quantity :
66 513209K UDC KIT O/D £49.70 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
67 513210 RETAINING RING D TYPE £2.55 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
68 502559 UDC CAGE D TYPE ALSO SEE 513209K £50.75 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
68 513209K UDC KIT O/D £49.70 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
69 502550 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE SET

70 513208 UDC CLUTCH SPRING ALSO SEE 513209K N/A NO LONGER AVAILABLE 1

71 500613 THRUST WASHER D TYPE £11.70 EACH IN STOCK 1
Order Quantity :
72 513215 RETAINING RING UNIDIRECTIONAL D TYPE £6.15 EACH IN STOCK 1
Order Quantity :
  ANNULUS ASSEMBLY
73 513195 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

74 506113 D TYPE BEARING IN ANNULUS £8.75 EACH IN STOCK 1
Order Quantity :
  NOT SERVICED
76 506111 FRONT BEARING D TYPE O/D INNER AXLE TR ETC £9.15 EACH IN STOCK 1
Order Quantity :
77 533360 BEARING DIFFERENTIAL SIDE & O/D £10.20 EACH IN STOCK 1
Order Quantity :
78 513214/1 ADJUSTMENT WASHER .105 D TYPE N/A NO LONGER AVAILABLE A/R

78 513214/2 ADJUSTMENT WASHER .100 N/A NO LONGER AVAILABLE A/R

78 513214/3 ADJUSTMENT WASHER .095 N/A NO LONGER AVAILABLE A/R

78 513214/4 ADJUSTMENT WASHER .090 N/A NO LONGER AVAILABLE A/R

  SOLENOID ASSEMBLY
79 512114 D TYPE SOLENOID £29.98 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
80 TN3207 NYLOC NUT - 1/4 THIN N/A NO LONGER AVAILABLE 1

81 514200 PLUG D TYPE OVERDRIVE £6.98 EACH IN STOCK 1
Order Quantity :
82 506109 SOLENOID COVER PLATE £4.60 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
83 513204 GASKET SIDE COVER D TYPE £0.80 EACH IN STOCK 1
Order Quantity :
84 HU504 SETSCREW - NO.10 X 1/2" UNF £0.25 EACH IN STOCK 3
Order Quantity :
85 WN705 WASHER - SHAKEPROOF NO 10 £0.20 EACH IN STOCK 3
Order Quantity :
86 513201 GASKET A AND D TYPE SOLENOID £1.35 EACH IN STOCK 1
Order Quantity :
87 PT504 SCREW NO 10 1/2" £0.30 EACH IN STOCK 2
Order Quantity :
88 WN705 WASHER - SHAKEPROOF NO 10 £0.20 EACH IN STOCK 2
Order Quantity :
  SPEEDOMETER DRIVE ASSEMBLY
89 506067 SPEEDO DRIVE GEAR ASSEMBLY D TYPE (ALSO 506067A) N/A NO LONGER AVAILABLE 1

89 506067A SCREWED END FOR SPEEDO DRIVE D TYPE £16.63 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
90 506066 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

91 506119 SPEEDO GEAR D TYPE £43.75 EACH IN STOCK 1
Order Quantity :
92 506115 O RING D TYPE SPEEDO £0.80 EACH IN STOCK 1
Order Quantity :
93 506067S SEAL SPEEDO PINION - D & A TYPE £5.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
94 501606 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

95 506071 SPEEDO DOWEL SCREW N/A NO LONGER AVAILABLE 1

96 500469 COPPER WASHER - 5/16 £0.30 EACH IN STOCK 1
Order Quantity :
97 506099 SPEEDO DRIVE GEAR D TYPE £20.30 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
98 513211 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

  REAR CASING ASSEMBLY
99 513198 REAR CASE D TYPE OVERDRIVE S/H £55.00 EACH IN STOCK 1
Order Quantity :
100 7H8325 REAR OIL SEAL D TYPE £3.98 EACH IN STOCK 1
Order Quantity :
101 146102 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

102 515818 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

103 515817 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

104 PC20 SPLIT PIN - 1/8 X 1" FRONT WHEEL BEARINGS £0.30 EACH IN STOCK 1
Order Quantity :
105 502560 BREATHER PLUG D TYPE £6.40 EACH OUT OF STOCK, AVAILABLE TO ORDER 1
Order Quantity :
