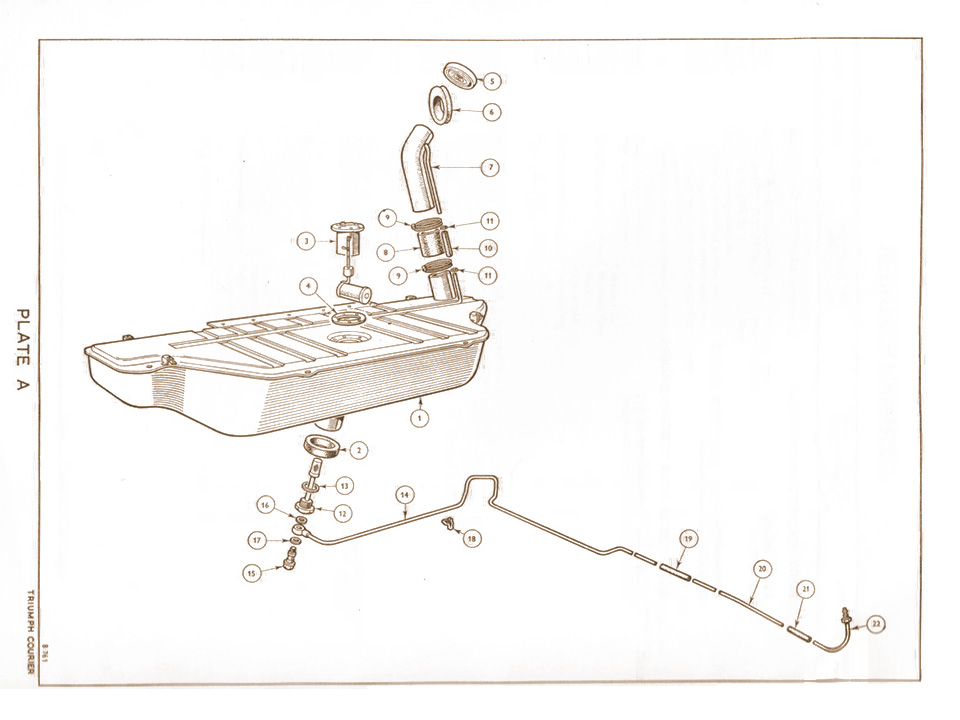

Click the item numbers in the diagram below for product information.
item 1 : 401730, 705569, 705568, Petrol Tank to Body, YZ3505, UL2704, WP5, WP7, FU2545, FJ2407, Petrol Tank to Wheelarch Bracket, WL207, HU706P, FQ3405 item 2 : 610176 item 3 : item 4 : item 5 : item 6 : item 7 : item 8 : item 9 : item 9 : item 10 : item 10 : item 11 : item 11 : item 12 : item 13 : item 14 : item 15 : item 16 : item 17 : item 18 : item 19 : item 20 : item 21 : item 22 :

To add any of the in stock, built to order, or available to order items to your basket, please choose an order qty and then hit the add to basket button.

To make it easier for our overseas customers, you can now browse our website and view prices in over

ITEM NO. PART NO. DESCRIPTION PRICE EXCH.
SURCHARGE
UNITS AVAILABILITY QTY REQ ORDER QTY
  PETROL TANK ASSEMBLY
1 401730 PETROL TANK ESTATE/COURIER N/A NO LONGER AVAILABLE 1

1 705569 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

1 705568 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 1

  Petrol Tank to Body
1 YZ3505 DOOR MIRROR SCREW N/A NO LONGER AVAILABLE 2

1 UL2704 SCREW - 1/4" X 1/2" HEXAGON HEAD ACME THREAD £0.28 EACH IN STOCK 2
Order Quantity :
1 WP5 PLAIN WASHER - NO 10 £0.25 EACH IN STOCK 2
Order Quantity :
1 WP7 PLAIN WASHER - 1/4 £0.20 EACH IN STOCK 4
Order Quantity :
1 FU2545 SPIRE CLIP £0.20 EACH IN STOCK 2
Order Quantity :
1 FJ2407 NO LONGER AVAILABLE N/A NO LONGER AVAILABLE 2

  Petrol Tank to Wheelarch Bracket
1 WL207 SPRING WASHER - 1/4 £0.11 EACH IN STOCK 2
Order Quantity :
1 HU706P SET POINT 1/4 X 3/4 N/A NO LONGER AVAILABLE 2

1 FQ3405 NUT RETAINER - 1/4" UNF £1.49 EACH IN STOCK 2
Order Quantity :
2 610176 SEALING RING N/A NO LONGER AVAILABLE 1
