Bonnet Lock Fitting Instructions
A bonnet lock is available as a special accessory in kit form comprising two lock assemblies.
| Inches | Millimetres | |
| A | 0.75" | 19.05 |
| B | 0.66" | 16.80 |
| C | 1.75" | 44.45 |
| D | 1.25" | 31.75 |
Fitting Instructions
Cover the area, forward of the bonnet catch lever, with white masking tape. Use a pencil to mark the position of hole as shown and dimensioned. Open out the hole to 5/8" (15.9mm) diameter, and shape the hole as dimensioned. Remove the tape and paint the edge of the metal to prevent rust formation.

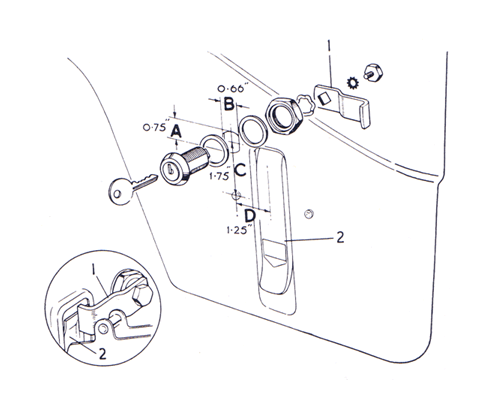

Assemble the bonnet lock details in the sequence shown.
